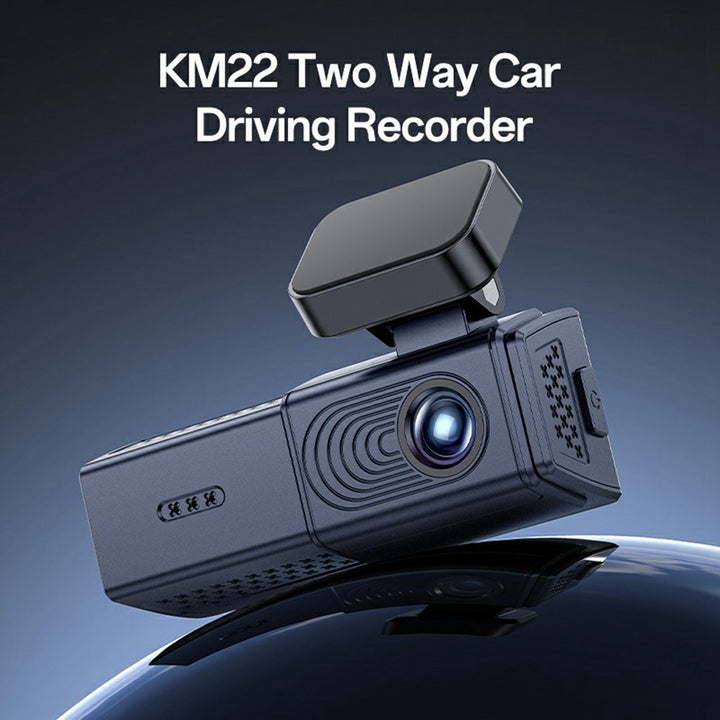

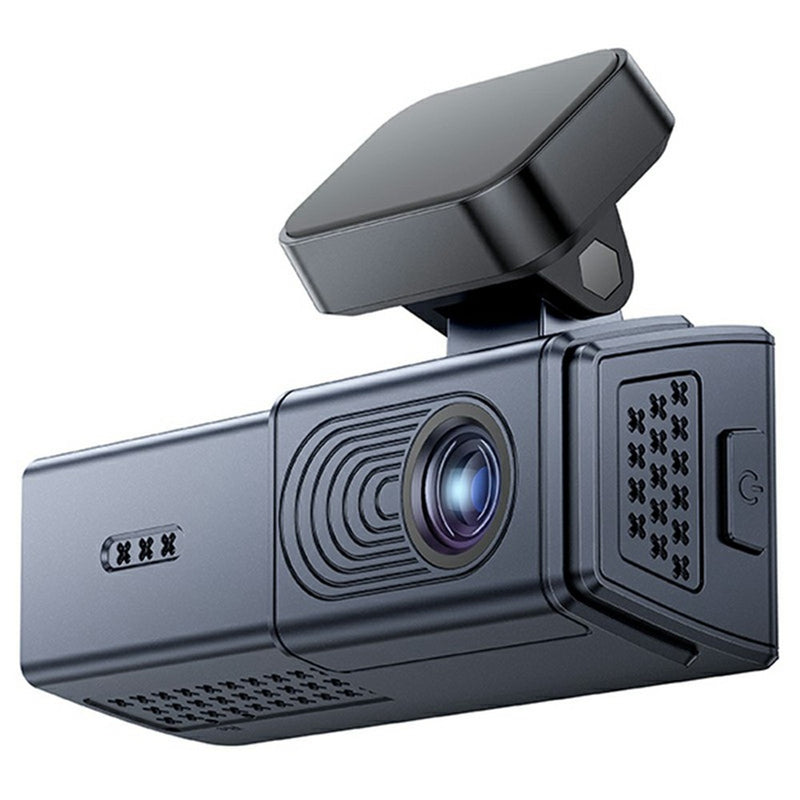

The YESIDO KM22 is a dual-channel car dash cam in ABS+PC. Chip: Hisilicon (upgraded from SA220G). Running memory: 8Mb Nor Flash. Gravity sensor: SC7A20. Screen: 1.47-inch IPS. Camera sensor: GC2083 (2G2P). Resolution: 1920×1080 at 30fps. Storage: up to 128GB Class 10 TF card (not included). Recording angle: 120° wide-angle. App: GOLOOK. G-sensor triggered emergency recording. 24/7 monitoring mode. No certifications listed. Colour: Black. Includes dash cam and English manual. Curated by Aetheo.
Why you'll like it
- Dual-channel recording — front and rear coverage simultaneously
- 1920×1080 at 30fps — 1K resolution recording via GC2083 sensor
- 120° wide-angle lens — broad field of view to reduce blind spots
- G-sensor triggered emergency recording — locks and protects footage on sudden impact
- GOLOOK app — access and review recordings from a connected device
Designed for in-vehicle recording
The KM22 records simultaneously from front and rear channels at 1920×1080 and 30fps, using the GC2083 sensor (2G2P lens configuration). The 120° wide-angle lens provides an expanded field of view across both channels. The Hisilicon chip (upgraded from SA220G) processes footage on the 8Mb Nor Flash RAM. The 1.47-inch IPS screen displays the live view and menu. The SC7A20 gravity sensor detects sudden impacts and automatically locks the corresponding footage in a protected partition, preventing overwriting. The device supports 24/7 monitoring mode for continuous recording when parked. Footage is reviewed via the GOLOOK app on a connected device. Storage is via a Class 10 TF card — up to 128GB (card not included). No certifications are listed in source documentation. Colour: Black. Curated by Aetheo.
Key features
Dual-channel 1080P recording — 120° wide angle

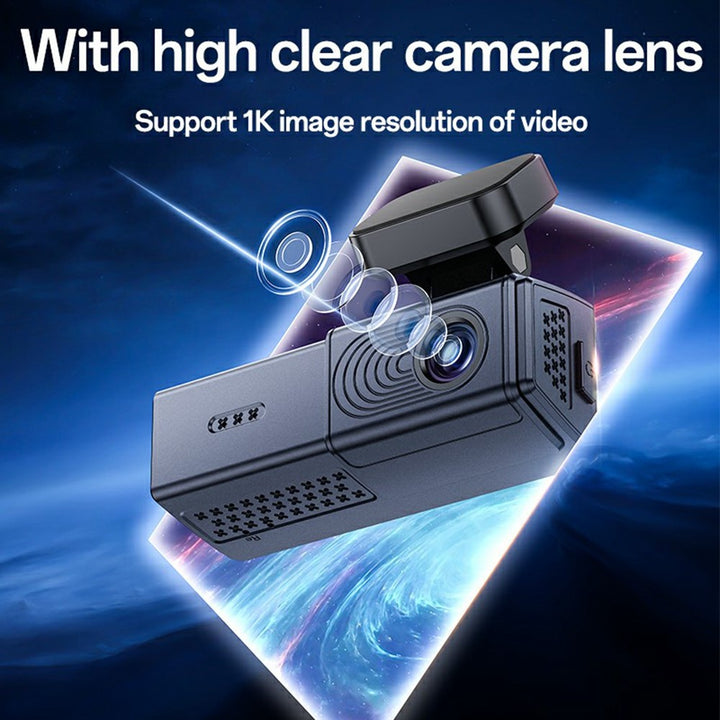

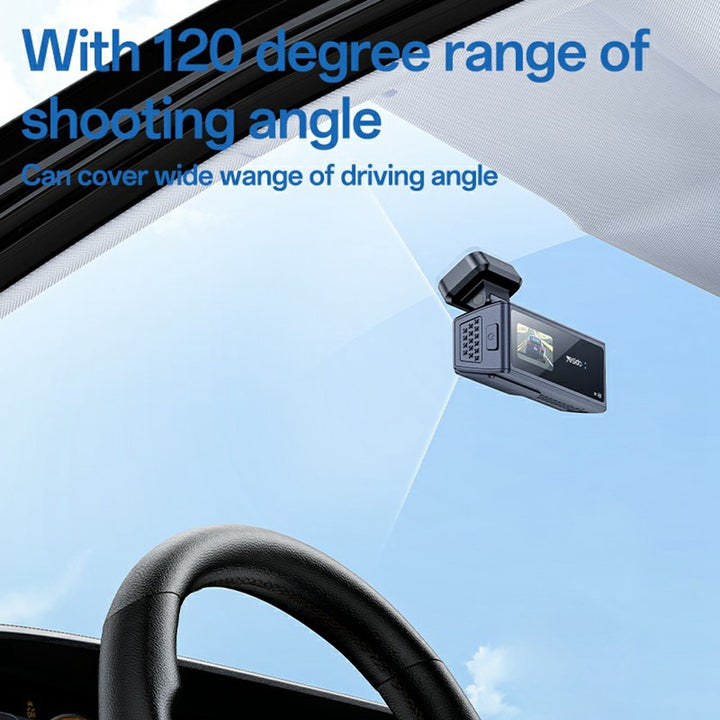

The KM22 captures front and rear footage simultaneously. Resolution is 1920×1080 at 30fps via the GC2083 (2G2P) image sensor. The 120° wide-angle lens covers a broad arc in both the forward and rear directions, reducing the blind spots typical of narrower-angle cameras. The 1.47-inch IPS screen allows live preview and menu navigation directly on the unit. Rear camera sensor specifications (separate from the primary GC2083) are not individually listed in source documentation.
G-sensor triggered emergency recording

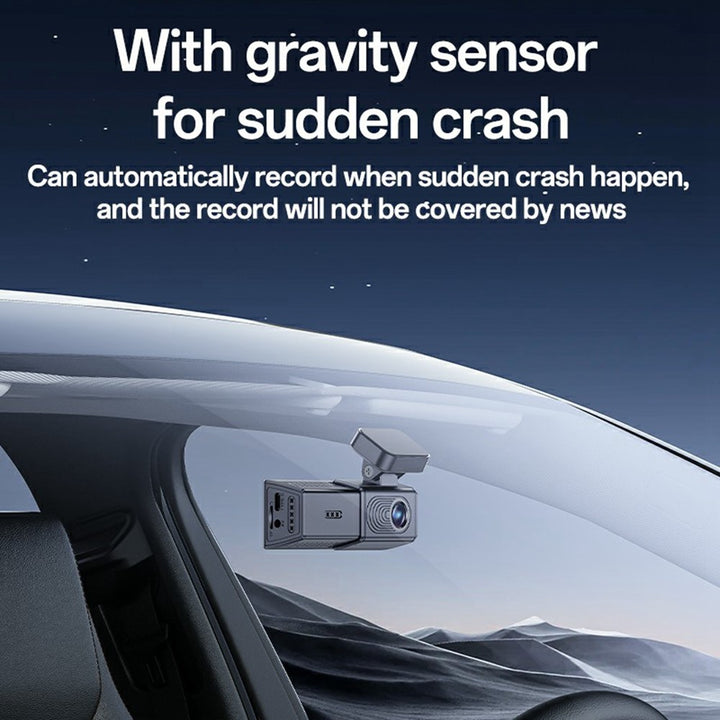

The SC7A20 gravity sensor monitors the vehicle for sudden changes in force — impacts, hard braking or collisions. When the sensor detects an event above a set threshold, the corresponding footage is automatically locked and saved to a protected partition on the TF card, preventing it from being overwritten by the loop-recording cycle. Emergency-locked clips are accessible and reviewable via the GOLOOK app. Sensitivity threshold for the G-sensor is not specified in source documentation.
24/7 monitoring — GOLOOK app
The KM22 supports 24/7 monitoring mode for continuous recording when the vehicle is stationary and parked. Monitoring mode requires a permanent power connection to the vehicle (hardwire kit not specified in source — not listed in package). The GOLOOK app allows footage to be accessed and reviewed on a connected smartphone — verify current app availability for your device's operating system and OS version before purchase. Loop recording writes footage continuously, overwriting the oldest files when storage is full, except for G-sensor-locked clips.
Up to 128GB Class 10 TF card storage
The KM22 supports TF (microSD) cards up to 128GB, Class 10 rating — a Class 10 card is required for reliable 1080P recording. The card is not included. Recording is continuous loop — oldest footage is overwritten automatically when the card is full, except for emergency-locked clips. Formatting a new card in the device before first use is recommended. Recording hours at 1080P/30fps will vary by card capacity and compression settings.
Best for
- Dual-channel coverage — front and rear recording simultaneously at 1080P
- 120° wide-angle — broad road coverage on both channels
- G-sensor protection — automatic emergency clip locking on impact
- 24/7 monitoring mode — continuous recording while parked
- GOLOOK app access — remote footage review on a connected device

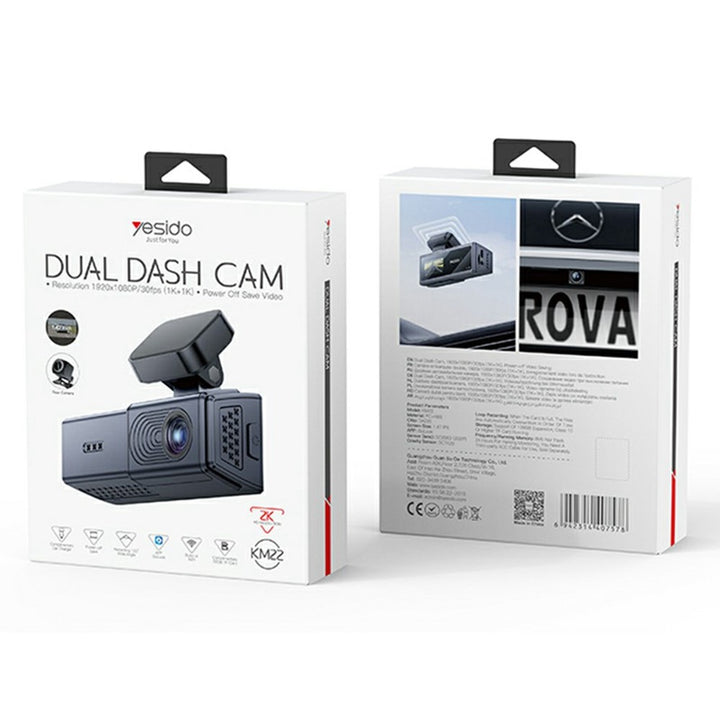

What's included
- 1 × YESIDO KM22 Dual Channel Dash Cam
- 1 × English User Manual
Compatibility and setup
Material: ABS + PC. Chip: Hisilicon (upgraded from SA220G). RAM: 8Mb Nor Flash. Gravity sensor: SC7A20. Screen: 1.47-inch IPS. Sensor: GC2083 (2G2P). Resolution: 1920×1080 / 30fps. Storage: up to 128GB Class 10 TF card (not included). Recording angle: 120° wide-angle. Channels: dual (front + rear). App: GOLOOK. 24/7 monitoring: yes. Emergency recording: G-sensor triggered. Certifications: not listed. Colour: Black. Included: dash cam
| Specification | Details |
|---|---|
| Brand | YESIDO |
| Model | KM22 |
| Material | ABS + PC |
| Chip | Hisilicon (upgraded from SA220G) |
| Running Memory | 8Mb Nor Flash |
| Gravity Sensor | SC7A20 |
| Screen | 1.47-inch IPS |
| Camera Sensor | GC2083 (2G2P) |
| Resolution | 1920×1080 / 30fps |
| Recording Angle | 120° wide-angle |
| Channels | Dual (front + rear) |
| Storage | Up to 128GB Class 10 TF card (not included) |
| App | GOLOOK |
| 24/7 Monitoring | Yes |
| Emergency Recording | G-sensor triggered (SC7A20) |
| Certifications | Not listed |
| Colour | Black |
| Included | Dash cam, English manual (TF card not included) |
